Break-out Unit

Size Range: 120 - 300mm

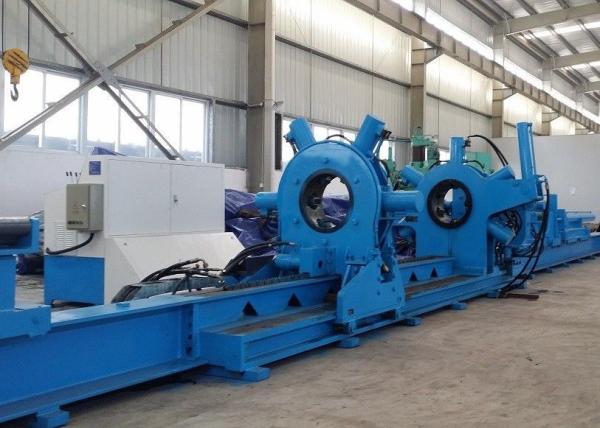

Hydraulic make-up and break-out unit is a make-up and break-out thread connection machine, its design is reliable and suitable for working in severe condition, it is also suitable for make upor break out collar in tubing and casing factory, oil field downhole pump, downhole tool, tubing, casing and other thread connection fittings during manufacture assembly and repair dismantlement. It has the following features:

1. The outer appearance is simple and compact.

2. Tong head adopted planetary claw clamp mechanism, no need to replace any parts in the application range.

3. The small distance between master tong and backup tong is suitable for ultrashort pup joint and tool.

4. Backup tong equipped with hydraulic walking mechanism, so it could move along with workpiece.

5. The torque control system is optional, the effect would be better if installed torque automatic control system.

Factory View

• Langfang Ouhang Technology Co.,Ltd focuses on supplying good and cost effective oil & gas equipment for the customers from China and all over the world.

  Downhole motors, PDC and Tri-cone Bits, Drilling Jars, Drill Pipes and Collars as well as other related well drilling tools and materials fall into our range.

  We would like to help our customers creat more value by our professinal knowledge and services. In the past 10 year our team members serves almost all oil and gas field in China.

  And we would like to bring our service to the customers all over the world. Any problmes or inquires will be highly focused here and the reply will be available in 48 hours.
